circular Saw Blades for ferrous metal

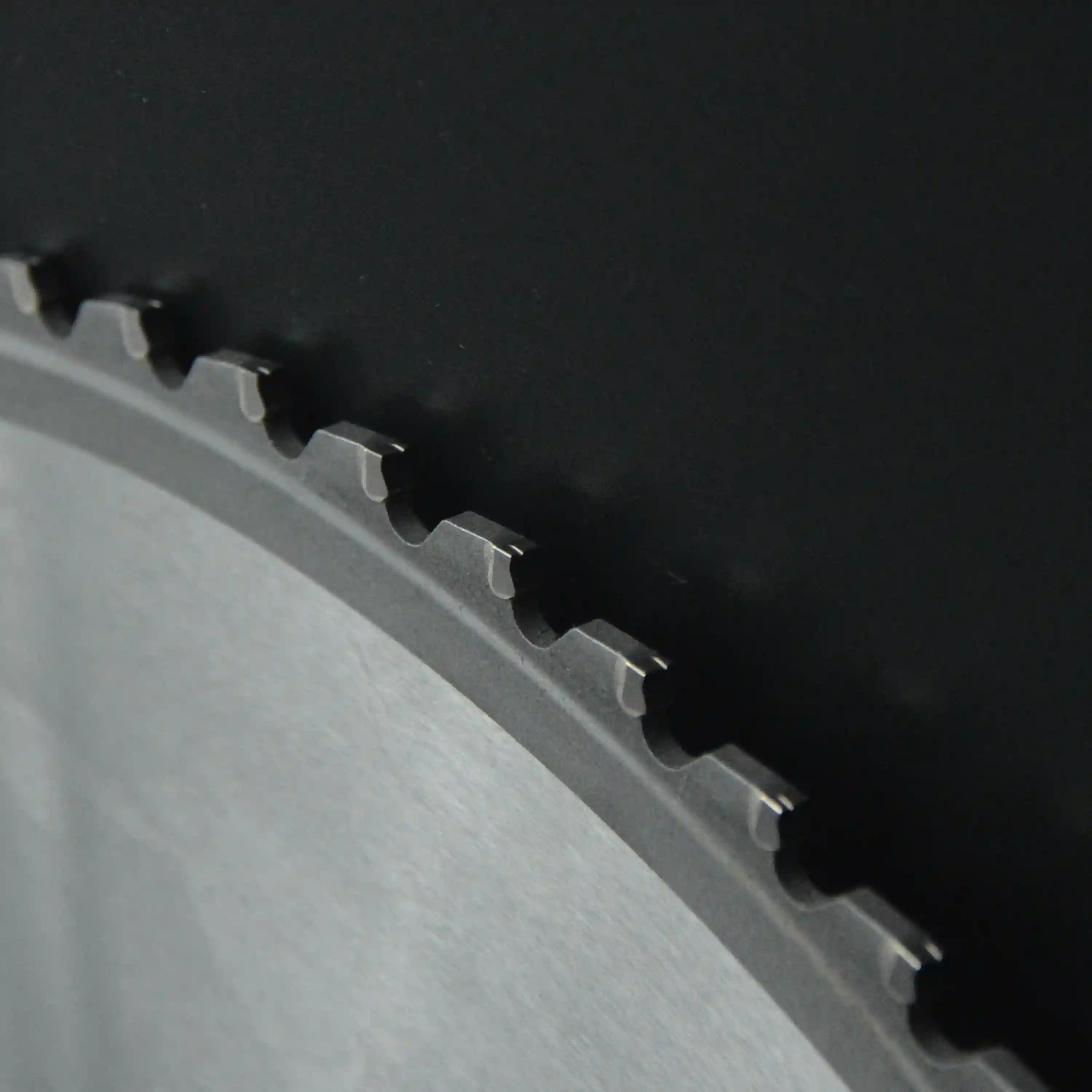

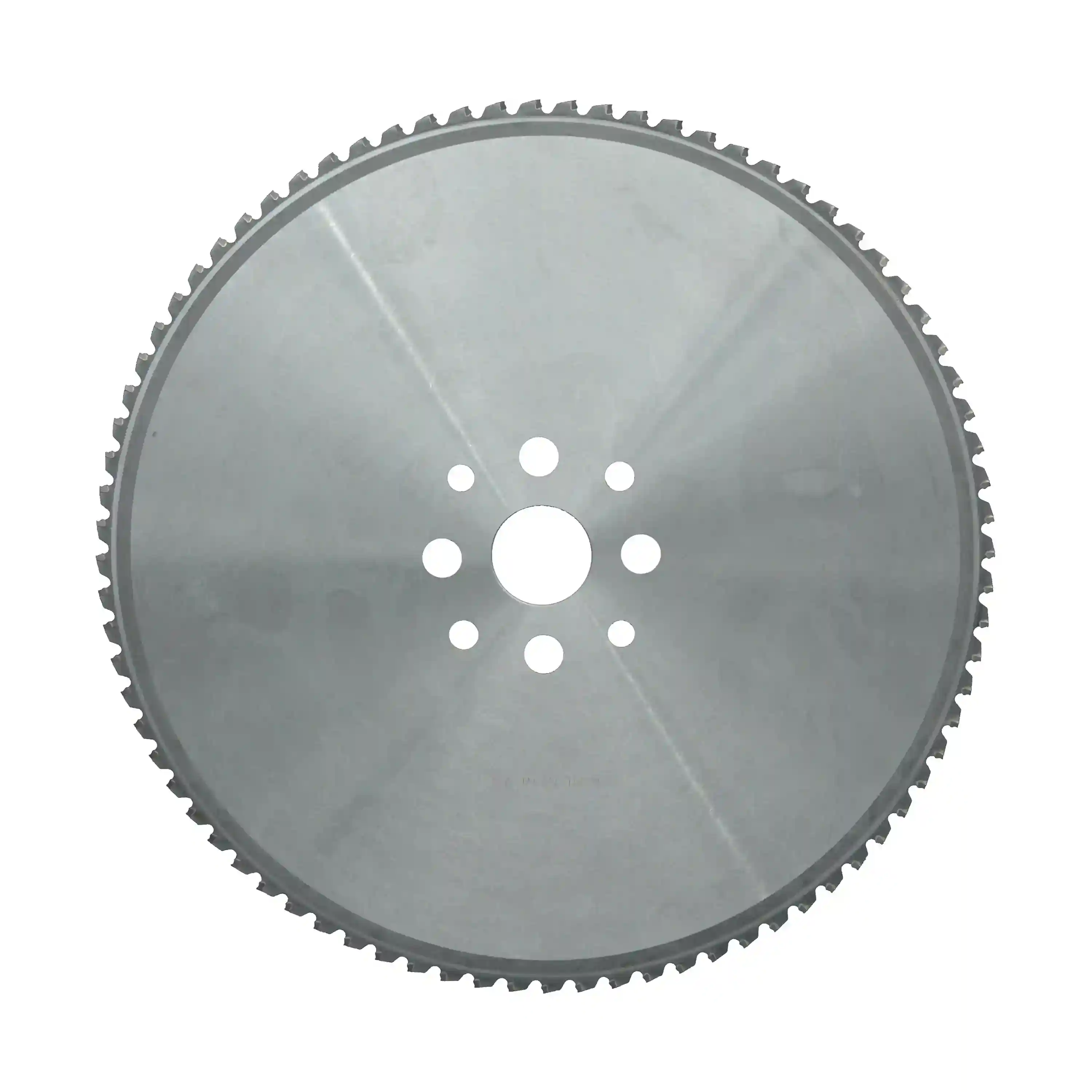

Cermet Circular Saw Blades for Metal-CSSA

cutting speed: 70m/min-120m/min.

tooth load: 0.04-0.1mm/tooth.

Suitable for cutting low or mild carbon steel, solid material or thick-walled pipes.

Grade: Industrial
Machines: High speed sawing machines
Materials: low or mild carbon steel, solid material, thick-walled pipes and profiles
Applications: For sawing low or mild carbon steel

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 80CrV2/SKS51
Tips: Cermet

Coating: Polished finish
Tension ring: Visible or concealed configuration

Typical Specification

Code	D mm	B mm	b mm	d mm	Z	Tooth Type	Pinholes
CSSA0240	240	1.8	1.5	32	60	TC	Custom
CSSA0250	250	1.5	1.3	32	54	TC	Custom
CSSA0251	250	1.5	1.3	32	72	TC	Custom
CSSA0252	250	1.5	1.3	32	80	TC	Custom
CSSA0253	250	2.0	1.7	32	54	TC	Custom
CSSA0254	250	2.0	1.7	32	72	TC	Custom
CSSA0255	250	2.0	1.7	32	80	TC	Custom
CSSA0256	250	2.0	1.8	32	54	TC	Custom
CSSA0280	285	1.5	1.3	32	60	TC	Custom
CSSA0281	285	1.5	1.3	32	72	TC	Custom
CSSA0282	285	2.0	1.8	32	54	TC	Custom
CSSA0283	285	2.0	1.7	32	60	TC	Custom
CSSA0284	285	2.0	1.7	32	72	TC	Custom
CSSA0285	285	2.0	1.7	32	80	TC	Custom
CSSA0286	285	2.0	1.8	40	60	TC	Custom
CSSA0287	285	2.0	1.8	40	72	TC	Custom
CSSA0288	285	2.0	1.8	40	80	TC	Custom
CSSA0310	315	2.3	2.0	40	80	TC	Custom
CSSA0360	360	2.0	1.7	40	60	TC	Custom
CSSA0361	360	2.0	1.7	40	72	TC	Custom
CSSA0362	360	2.0	1.7	40	100	TC	Custom
CSSA0363	360	2.5	2.3	40	80	TC	Custom
CSSA0364	360	2.5	2.3	40	100	TC	Custom
CSSA0365	360	2.5	2.3	50	80	TC	Custom
CSSA0366	360	2.5	2.3	50	100	TC	Custom
CSSA0367	360	2.6	2.3	50	60	TC	Custom
CSSA0368	360	2.6	2.3	50	80	TC	Custom
CSSA0369	360	2.6	2.3	50	100	TC	Custom
CSSA0380	380	2.5	2.3	50	48	TC	Custom
CSSA0381	380	2.5	2.3	50	80	TC	Custom
CSSA0382	380	2.5	2.3	50	100	TC	Custom
CSSA0420	425	2.7	2.3	50	50	TC	Custom
CSSA0421	425	2.7	2.3	50	60	TC	Custom
CSSA0460	460	2.7	2.3	50	40	TC	Custom
CSSA0461	460	2.7	2.3	50	50	TC	Custom
CSSA0462	460	2.7	2.3	50	60	TC	Custom
CSSA0560	560	3.0	2.5	50	44	TC	Custom
CSSA0561	560	3.0	2.5	50	60	TC	Custom
CSSA0750	750	3.4	2.7	50	60	TC	Custom
CSSA0751	750	3.4	2.7	50	80	TC	Custom
CSSA0752	750	3.4	2.7	50	100	TC	Custom
CSSA0753	750	3.4	2.7	50	120	TC	Custom
CSSA0754	750	3.4	2.7	50	140	TC	Custom

Specifications can be tailored to meet customer requirements.
