circular Saw Blades for steel tube

Tungsten Carbided Circular Saw Blades for Flying Cut-off-CSTB

cutting speed: 180m/min-450m/min.

tooth load: 0.05-0.15mm/tooth.

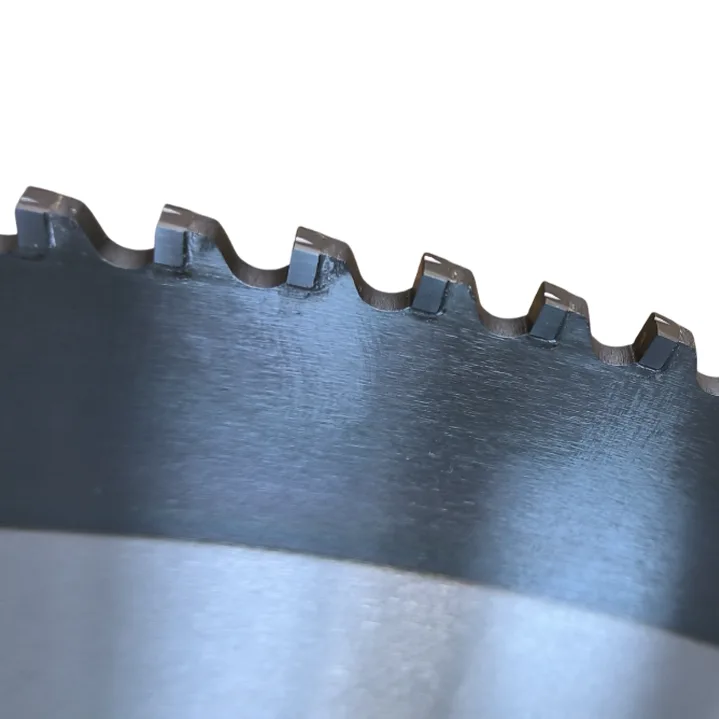

PVD coated tungsten carbide tipped saw blades designed for cutting all steel tubes.

Grade: Industrial
Machines: Flying cut-off machines
Materials: All steel tubes with a tensile strength up to 1600Mpa
Applications: For sawing all steel tubes with a tensile strength up to 1600Mpa

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 80CrV2/SKS51
Tips: Tungsten carbide

Coating: PVD
Tension ring: Visible or concealed configuration

Typical Specification

Code	D mm	B mm	b mm	d mm	Z	Tooth Type	Pinholes
CSTB0400	400	2.8	2.5	50	100	TCF	custom
CSTB0401	400	2.8	2.5	50	120	TCF	custom
CSTB0402	400	2.8	2.5	50	130	TCF	custom
CSTB0403	400	2.8	2.5	50	140	TCF	custom
CSTB0420	425	2.7	2.3	50	120	TCF	custom
CSTB0421	425	2.7	2.3	50	130	TCF	custom
CSTB0422	425	2.7	2.3	50	140	TCF	custom
CSTB0450	450	2.8	2.5	50	120	TCF	custom
CSTB0451	450	2.8	2.5	50	130	TCF	custom
CSTB0452	450	2.8	2.5	50	140	TCF	custom
CSTB0453	450	2.8	2.5	50	160	TCF	custom
CSTB0500	500	3.5	3.0	50	120	TCF	custom
CSTB0501	500	3.5	3.0	50	130	TCF	custom
CSTB0502	500	3.5	3.0	50	140	TCF	custom
CSTB0503	500	3.5	3.0	50	160	TCF	custom
CSTB0504	500	3.5	3.0	50	170	TCF	custom
CSTB0550	550	3.6	3.2	80	120	TCF	custom
CSTB0551	550	3.6	3.2	80	140	TCF	custom
CSTB0552	550	3.6	3.2	80	150	TCF	custom
CSTB0553	550	3.6	3.2	80	160	TCF	custom
CSTB0554	550	3.6	3.2	80	170	TCF	custom
CSTB0560	560	3.6	3.2	80	120	TCF	custom
CSTB0561	560	3.6	3.2	80	140	TCF	custom
CSTB0562	560	3.6	3.2	80	150	TCF	custom
CSTB0563	560	3.6	3.2	80	160	TCF	custom
CSTB0564	560	3.6	3.2	80	170	TCF	custom
CSTB0600	600	3.6	3.2	80	140	TCF	custom
CSTB0601	600	3.6	3.2	80	150	TCF	custom
CSTB0602	600	3.6	3.2	80	160	TCF	custom
CSTB0603	600	3.6	3.2	80	170	TCF	custom
CSTB0630	630	3.6	3.2	80	140	TCF	custom
CSTB0631	630	3.6	3.2	80	160	TCF	custom
CSTB0650	650	3.6	3.2	80	150	TCF	custom
CSTB0651	650	3.6	3.2	80	170	TCF	custom
CSTB0690	690	3.6	3.2	80	150	TCF	custom
CSTB0691	690	3.6	3.2	80	170	TCF	custom

Specifications can be tailored to meet customer requirements.
