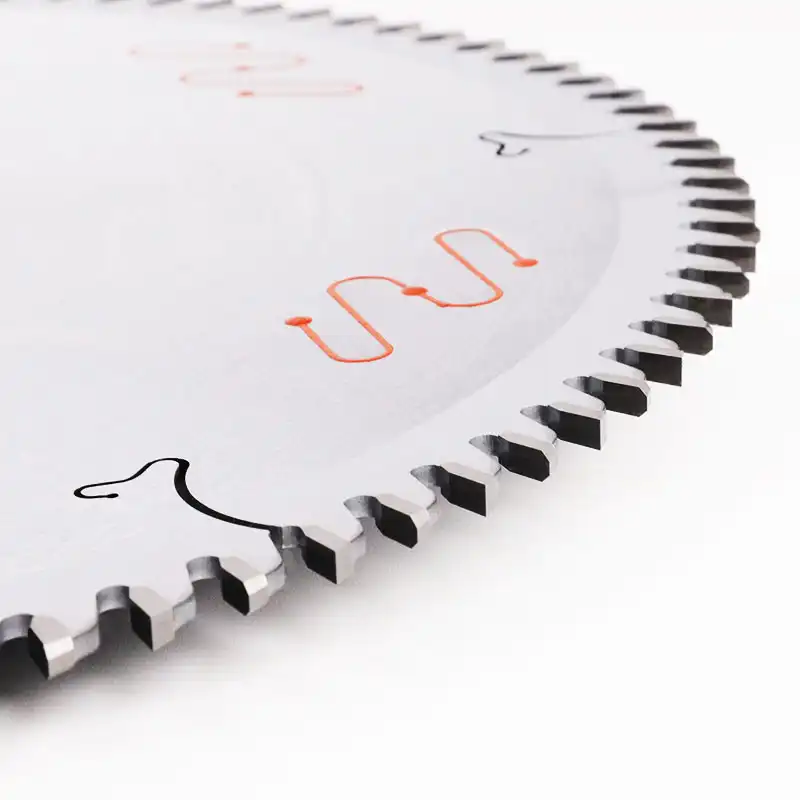

Tungsten Carbide Tipped Panel Sizing Saw Blades-PW5A

Tungsten Carbide Tipped Panel Sizing Saw Blades-PW5A

Designed for sizing chipboard, MDF and polywood laminated panels using a scoring saw blade, especially melamine-coated panels, ensuring excellent finishing and extended blade life.

Grade: Industrial
Machines: Sliding table saws, Table saws
Materials: Wood based panels, laminated chipboard, MDF and polywood
Applications: Panel sizing

Get a quote

Optional materials and processes(OEM/ODM Available)

Body: 75Cr1/80CrV2/SKS51
Tips: Tungsten carbide
Expansion Slots: Available with or without copper plugs

Coating: Polished finish or chrome plating
Tension ring: Visible or concealed configuration
Anti-vibration Design: Slots or slots filled with thermoplastic polyurethane (TPU)

Typical Specification

Code	D Diameter(mm)	B Width of Cut(mm)	b(mm)	d Bore(mm)	Z Number of teeth	Tooth type	Pinholes	α Hook angle (°)
PW5A0201	200	3.2	2.2	30	64	TCG	2/7/42	10
PW5A0251	250	3.2	2.2	30	80	TCG	FT01	10
PW5A0301	300	3.2	2.2	30	72	TCG	FT01	10
PW5A0302	300	3.2	2.2	30	72	ATB	FT01	10
PW5A0305	300	3.2	2.2	30	96	TCG	FT01	10
PW5A0306	300	3.2	2.2	30	96	ATB	FT01	10
PW5A0351	350	3.5	2.5	30	72	TCG	FT01	10
PW5A0352	350	3.5	2.5	30	72	ATB	FT01	10
PW5A0355	350	3.5	2.5	30	96	TCG	FT01	10
PW5A0356	350	3.5	2.5	30	96	ATB	FT01	10
PW5A0357	350	3.5	2.5	30	108	TCG	FT01	10
PW5A0358	350	3.5	2.5	30	108	ATB	FT01	10

FT01: 2/9/46.4 + 2/10/60
Specifications can be tailored to meet customer requirements.
