Circular Saw Blade Specifications

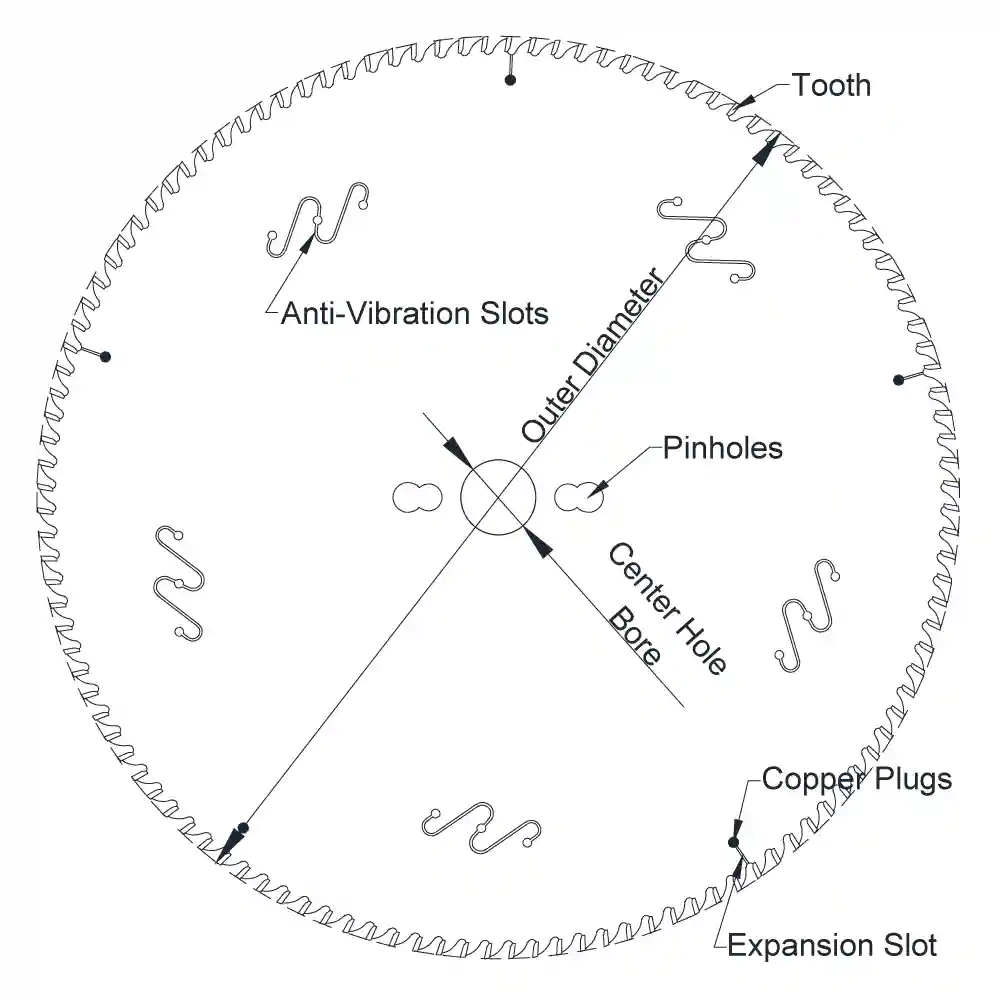

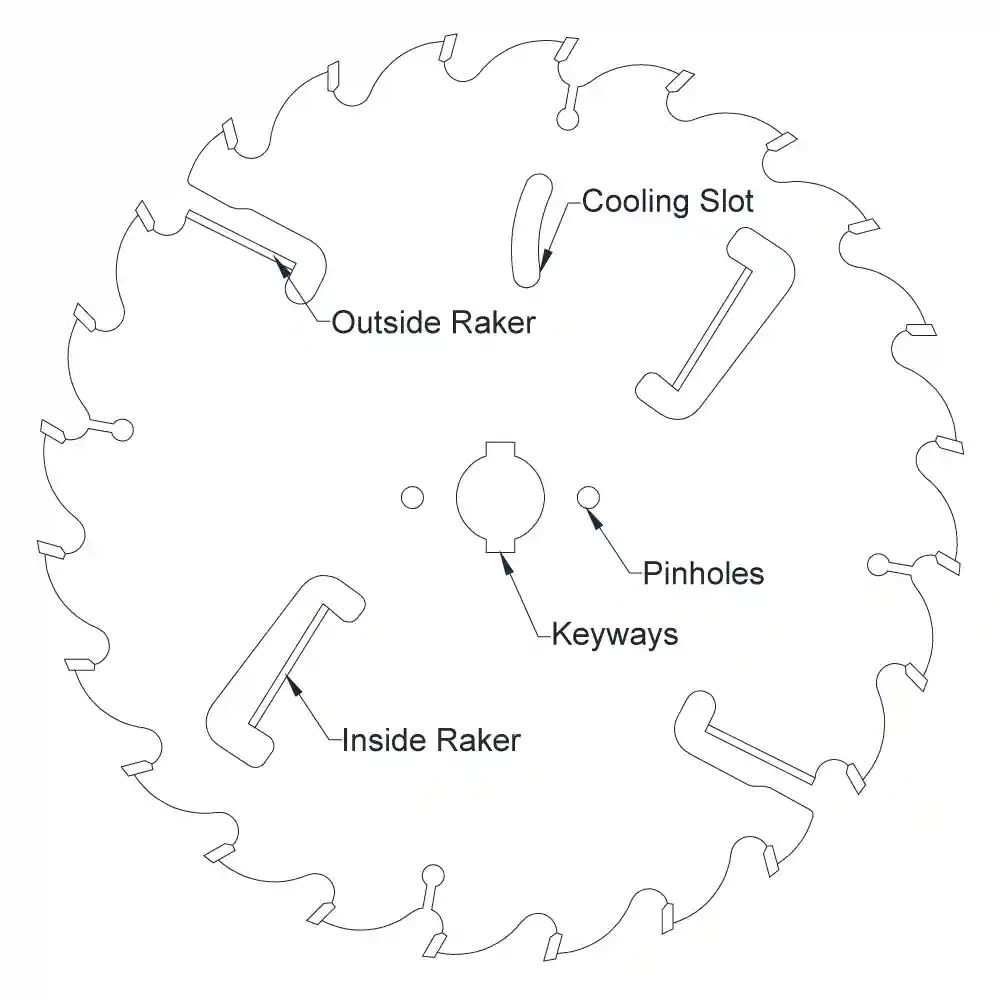

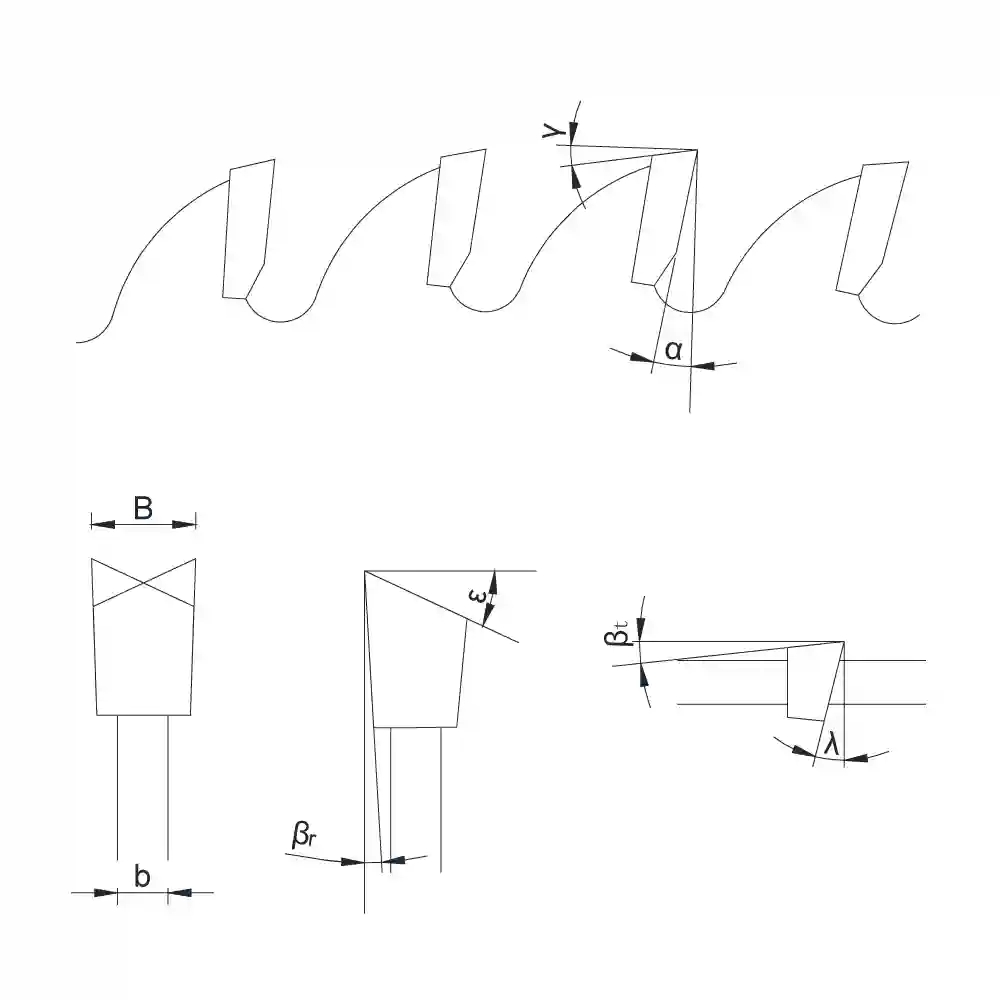

Tooth Terms

Abbreviation Description
α Hook angle
γ Clearance angle
ε Top Bevel angle
λ Face Bevel angle
βr Radial Clearance angle
βt Tangential Clearence angle
B Kerf/Width of Cut
b Body Thickness

Typical Tooth Geometries

Cutting Edge Shape Term

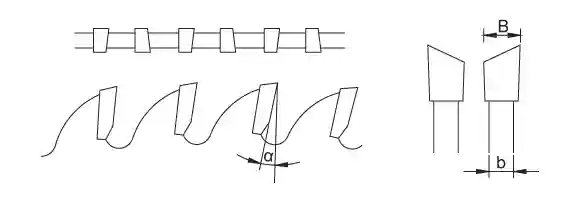

ATB-toohtype-diagram ATB

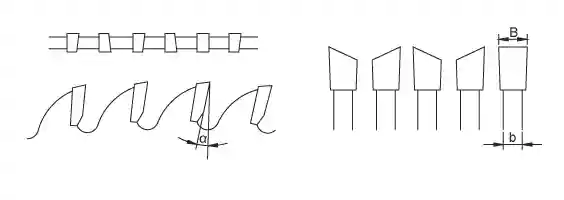

ATB5-toohtype-diagram.webp ATB5

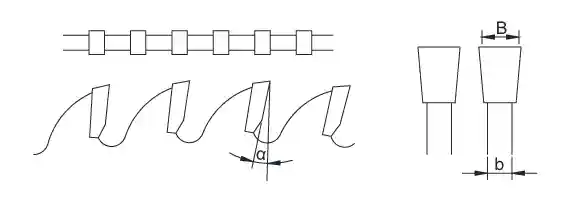

FTG-toohtype-diagram.webp FTG

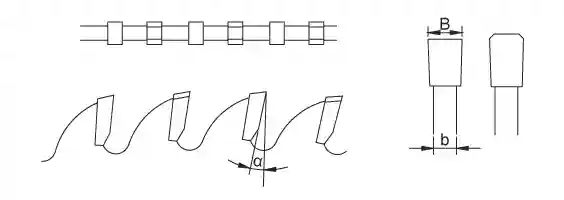

TCG-toohtype-diagram.webp TCG

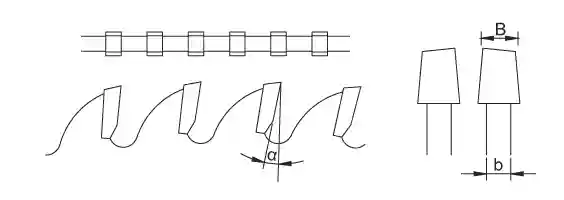

Conical-A-toohtype-diagram.webp Conical-A
Conical-F-toohtype-diagram.webp Conical-F

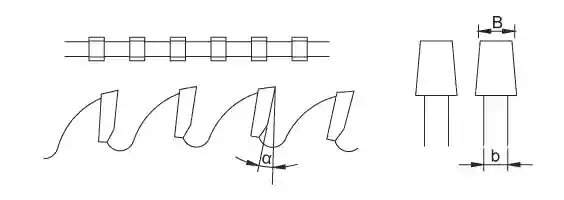

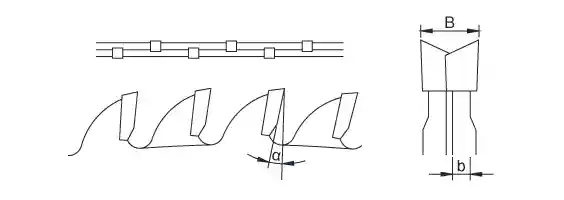

Conical-S-toohtype-diagram.webp Conical-S

Cutting speed calculation formula

V = π D N 1000
V:Cutting speed (Peripheral speed), m/min
D:Outer diameter of saw blade , mm
N:Rotational Speed of saw blade, min-1
π: pi [3.14]

Chip load calculation formula

F z = F 1000 N Z
Fz: Chip load, mm/tooth
F: Feed speed, m/mim
N: Rotational Speed of saw blade, min-1
Z: Number of teeth

Maximum Operating Speed

The table below indicates the maximum allowable RPM based on the saw blade’s outer diameter and body thickness.
Outer Diameter of Saw Blade (mm)
205 255 305 355 405 455 500 550 600 650
550040003100
6900
83004800370026002100
97005700440031002500
11100650050003500280022001800
12500730056004000320025002000
1390081006300440036002700220019001700
890069004900390030002400
990075005300430033002700210019001700
8200580046003600290023002000
88006200500039003100250022001800
6700540041003400260024001900
570044003600280025002100
47003800300027002200
4000320028002300
340030002400
32002600
2700
2800
The maximum RPM values are determined assuming a standard flange diameter. Please contact us when using non-standard flanges.
Diameter of saw blade(mm) Diameter of Flange(mm)
205 80
255 100
305 100
355 120
405 120
455 120
500 160
550 160
600 160
650 160
